电压：690VAC/800VDC
电流：1A-200A
熔断特性：aR/gR
安规：CE/UL/TUV
环保：RoHS
兼容规格：BS88-4 Series/LCT/LET/LMT/LMMT/CT/ET/FE/EET/FEE/FM/FMM/MT/MMT Series/E

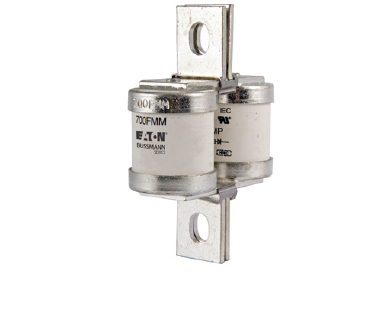

• Rated voltage:
• FM: 690 V a.c. / 450 V d.c. (IEC); 700 V a.c./500 V d.c. (UL)
• FMM: 690 V a.c. / 450 V d.c. (IEC)
• MT and MMT: 690 V a.c. / 350 V d.c. (IEC); 700 V a.c. (UL)
• Rated current: 160 A to 710 A
• Breaking capacity:
• FM: 200 kA RMS Sym. (IEC/UL), 40 kA at 450 V d.c. (IEC),
50 kA at 500 V d.c. (UL)
• FMM: 200 kA RMS Sym. (IEC/UL), 40 kA at 450 V d.c. (IEC)
• MT & MMT: 200 kA RMS Sym. (IEC/UL), 40 kA at 350 V d.c. (IEC)
• Operating Class: aR

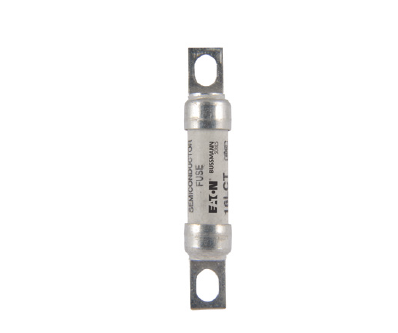

Voltage: 690 V a.c. / 500 V d.c. (IEC), 700 V a.c. / 500 V d.c. (UL)
Current: 6 A to 200 A
Breaking Capacity:
- CT: 90 kA RMS Sym., 40 kA at 500 V d.c. (IEC)
- 200 kA RMS Sym., 50 kA at 500 V d.c. (UL)
- ET, EET, FE, and FEE: 200 kA RMS Sym., 50 kA at 500 V d.c.
- Operating Class: aR

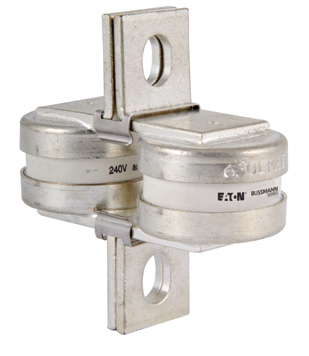

电压：240 V a.c. / 150 V d.c. (IEC)， 250 V a.c. / 150 V d.c. (UL)
电流: 160 A to 900 A
分断能力： 200 kA RMS Sym., 40 kA at 150 V d.c. (IEC)
                  200 kA RMS Sym., 50 kA at 150 V d.c. (UL)
保护类别: aR

Rated voltage:
• LCT 240 V a.c. / 150 V d.c. (IEC)
250 V a.c. / 150 V d.c. (UL)
• LET 280 V a.c. / 150 V d.c. (UL, 25 A to 160 A)
250 V a.c. / 150 V d.c. (UL 180 A)
• Rated current: 6 A to 180 A
• Breaking capacity:
• 200 kA RMS Sym.
• 50 kA DC at 150 V d.c.
• Operating Class: aR

电压：1500VDC
电流：32A-125A
标准： IEC60269-4,BS88.4
保护类别：aR
