• Rated voltage:
• 690 V a.c. (IEC)，700 V a.c. (UL)
• Rated current: 40 A to 2000 A
• Breaking capacity: 200 kA RMS Sym
• Operating class: aR
Standards / Agency information
CE, Designed and tested to IEC60269 Part 4. Consult Eaton for UL Recognition/CSA
Component Acceptance status. CCC except where noted.

• Rated voltage:
• 690 V a.c. (IEC)， 700 V a.c. (UL, size 000; size 00 100 A to 400 A)，700 V d.c. (UL, size 000)
• Rated current: 10 A to 400 A
• Breaking capacity:
• 200 kA RMS Sym
• 50 kA at 700 V d.c. (size 000 only)
• Operating class
• gR - size 000 (10 A to 63 A), size 00 (25 A to 80 A)
• aR - size 000 (>63 A), size 00 (>80 A)

电压：1000VAC/900VAC
电流：20-315A
认证：UL,CSA,CE
分断能力：125kA

电压：690VAC/800VDC
电流：1A-200A
熔断特性：aR/gR
安规：CE/UL/TUV
环保：RoHS
兼容规格：BS88-4 Series/LCT/LET/LMT/LMMT/CT/ET/FE/EET/FEE/FM/FMM/MT/MMT Series/E

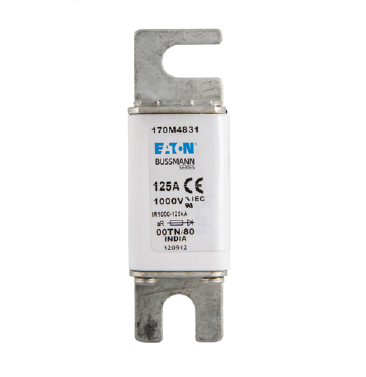

电压：1000VAC/900VAC
电流：50A-1400A
认证：UL,CE,CCC
分断能力：125kA AC/50kA 750VDC

电压：1000VDC
电流：25A-500A
分断能力：50kA DC
保护类别：aR
认证：UL,CE

电压: 1250 V a.c. / 850 V d.c. (IEC)
电流: 1400 A
分断能力: 100 kA at 1250 V a.c.
             80 kA at 850 V d.c., L/R 8ms
保护类别: aR

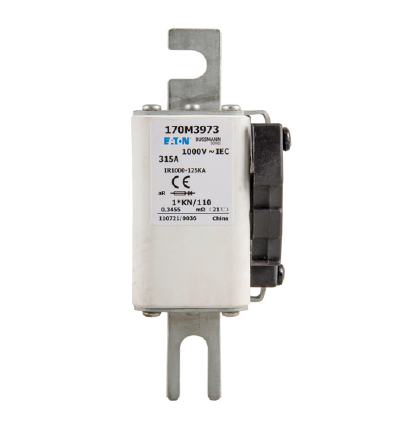

• Rated voltage:1000 V a.c. (IEC and UL 20 A to 250 A)，900 V a.c. (IEC, 315 A)
• Rated current: 20 A to 315 A
• Breaking capacity: 125 kA RMS Sym
• Operating class: aR
Standards / Agency information
CE, Designed and tested to IEC60269 Part 4, UL Recognised/CSA
component acceptance status (20-250 A)

• Rated voltage:
• FM: 690 V a.c. / 450 V d.c. (IEC); 700 V a.c./500 V d.c. (UL)
• FMM: 690 V a.c. / 450 V d.c. (IEC)
• MT and MMT: 690 V a.c. / 350 V d.c. (IEC); 700 V a.c. (UL)
• Rated current: 160 A to 710 A
• Breaking capacity:
• FM: 200 kA RMS Sym. (IEC/UL), 40 kA at 450 V d.c. (IEC),
50 kA at 500 V d.c. (UL)
• FMM: 200 kA RMS Sym. (IEC/UL), 40 kA at 450 V d.c. (IEC)
• MT & MMT: 200 kA RMS Sym. (IEC/UL), 40 kA at 350 V d.c. (IEC)
• Operating Class: aR

Voltage: 690 V a.c. / 500 V d.c. (IEC), 700 V a.c. / 500 V d.c. (UL)
Current: 6 A to 200 A
Breaking Capacity:
- CT: 90 kA RMS Sym., 40 kA at 500 V d.c. (IEC)
- 200 kA RMS Sym., 50 kA at 500 V d.c. (UL)
- ET, EET, FE, and FEE: 200 kA RMS Sym., 50 kA at 500 V d.c.
- Operating Class: aR

电压：240 V a.c. / 150 V d.c. (IEC)， 250 V a.c. / 150 V d.c. (UL)
电流: 160 A to 900 A
分断能力： 200 kA RMS Sym., 40 kA at 150 V d.c. (IEC)
                  200 kA RMS Sym., 50 kA at 150 V d.c. (UL)
保护类别: aR

Rated voltage:
• LCT 240 V a.c. / 150 V d.c. (IEC)
250 V a.c. / 150 V d.c. (UL)
• LET 280 V a.c. / 150 V d.c. (UL, 25 A to 160 A)
250 V a.c. / 150 V d.c. (UL 180 A)
• Rated current: 6 A to 180 A
• Breaking capacity:
• 200 kA RMS Sym.
• 50 kA DC at 150 V d.c.
• Operating Class: aR

电压：2000VAC
电流：100A-3000A
保护类别：aR
分断能力：100kA

电压：1500VAC/1600VAC
电流：800A-4500A
保护类别：aR
分断能力：100kA
