VJT 延时型

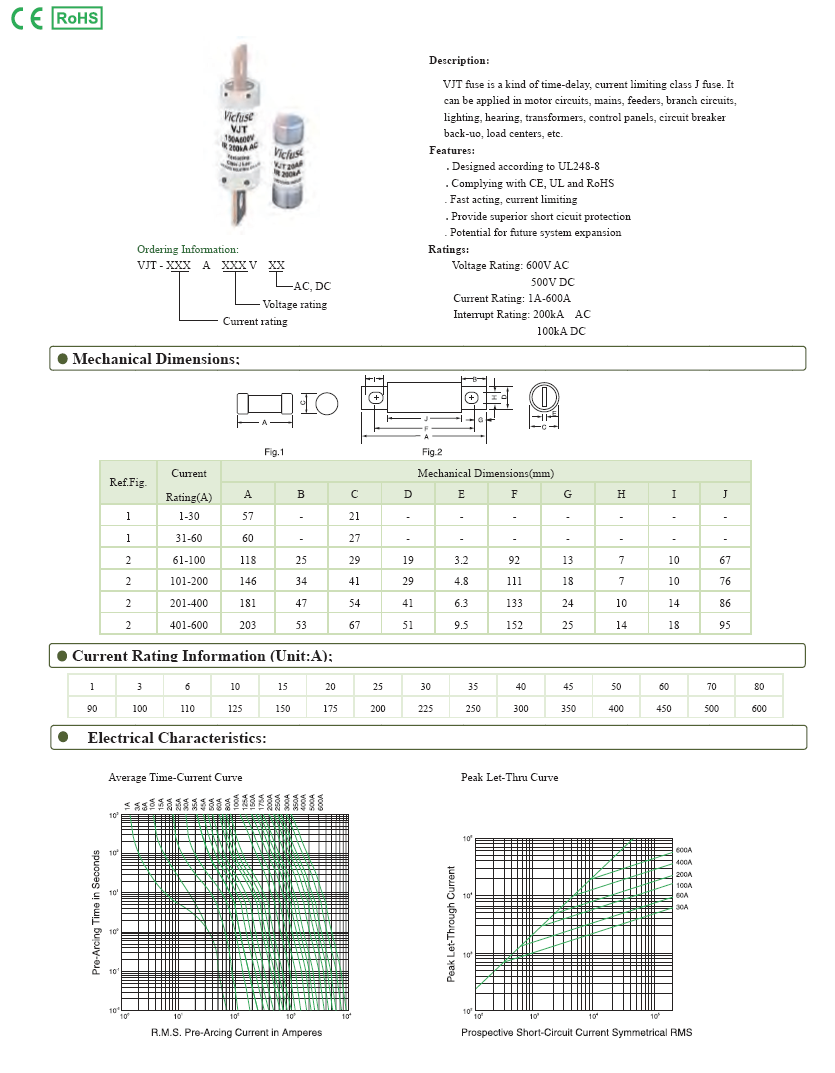

Description:

VJT fuse is a kind of time -delay, current limiting class J fuse. It can be applied in motor circuits, mains, feeders, branch circuits, lighting, hearing. transformers, control panels, circuit breaker back-uo, load centers, etc.

Features:
. Designed according to UL248-8
. Complying with CE, UL and RoHS
. Fast acting. curent limiting
. Provide superior short citcuit protection
. Potential for future system expansion

Ratings: .
Voltage Rating: 600V AC
500V DC
Current Rating: 1A-600A
Interrupt Rating: 200kA AC
100kA DC

电压：600VAC 500VDC
电流：1A-600A
熔断特性：Time-delay
安规：UL,CE
环保：RoHS/REACH /PF
兼容规格： LPJ-SP/JKS A4J/HSJ
备注： Current limiting; Class J
典型应用：
VJT熔断器是一种延时型、限流型J类熔断器。
它适用于电动机电路、主电路、馈线电路、分支电路、照明、
电力系统、变压器、控制面板、断路器后备电源、负载中心等。
